Special early 1964 features on 1965 cars

Jacques

Is there any way to blow the chart up bigger or make a clickable link? I am having a very hard time seeing it and want to update some of the new items on 359.

Thanks
Greg

Quote:

---

Originally Posted by 911T1971

Edited:

above pics show probably two cars.
Car one is Prototyp chassis 13321, built 1962, plate S CU 902, white. Destroyed in early 1965.
This the car shown in the 1963 901 brochure as well on the cover of 1963 Panorama.
The lady with hat is the secretary of Huschke von Hanstein.

.

Car two with plate S TC 1 was Prototyp chassis 13325, yellow, built at Karmann 1963. The car was the show car of Frankfurt 1963, seen in many pics with plate "Typ 901". Destroyed Dec 1965.
The photos showing S TC 1 were taken at a test by German Journalist Seiffert for Motor Revue magazine, the driver shown is Peter Falk. Photos by Weitmann. This photos have been published in Germany in Fall of 1964 already. Maybe Cars and Drivers reused the pics for early 1965. Possible since they could receive them at the end of 1964.

Only the 1963 printed 901 brochure(s) show cars withouth rockers. Once the 911 literature was printed by 1964 (US as well as RoW) they all have rockers.
I think they added rockers and overriders by drawing them to it, as it was common with many literature items.

---

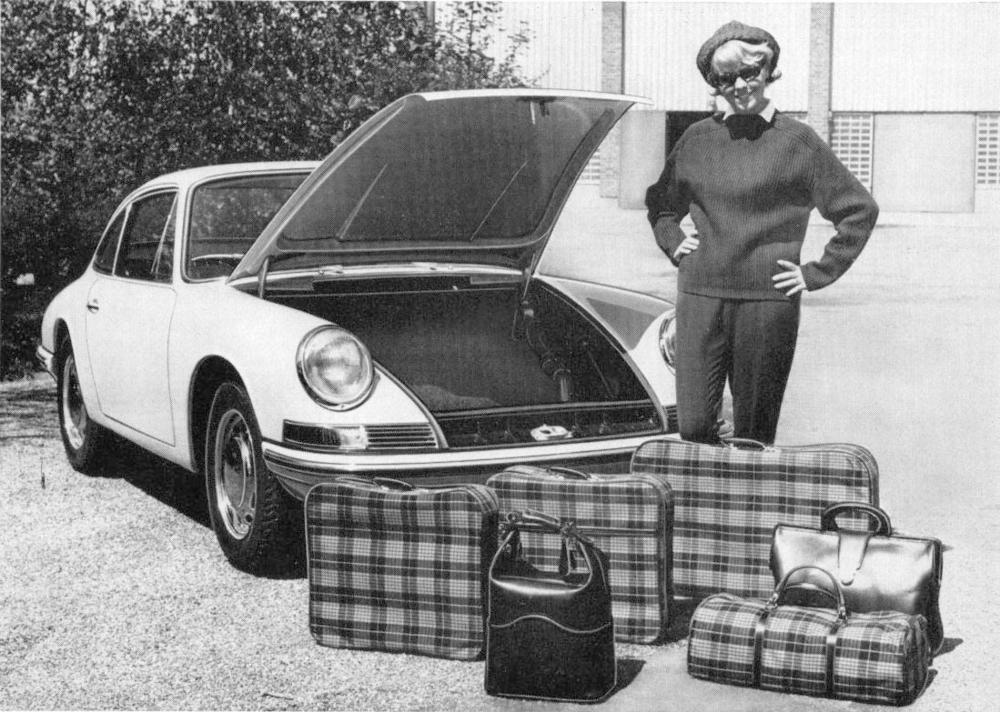

Speaking of touching up photos (albeit getting off topic), here's a little more Photoshop work. The photo with luggage from the Stuttgart Auto Show brochure:

Attachment 344456

And, the photo with luggage from the October 1964 brochure:

Attachment 344458

Not only are the suitcases in the same position but contents of the trunk are the same. Even so, the car has grown rocker decos. It hasn't grown crests on its hubcaps. It looks like the same woman in a different outfit.

The hubcaps were used in the very first early 64 356Cs and SCs. They all all have the date date stamp on them which is 3/63. I am positive that there was only one run of them by Lemmerz and every hub cap made since has had a crest.

vent window appears not to have a latch??? Or is it a wind deflector?

Quote:

---

Originally Posted by pss

Txs Frank,
I needed this. Lets see what this thread is worth and kill this subject forever.
Here are 2 different calipers.
Who has which caliper? Pls send us yr data, which one is the early one?
Cheers, Jacques

Attachment 344440

---

There are 3 different calipers that were used in early 911s. The first one is a 356 caliper. It is ribbed on the inner and out half. The next one is ribbed on the outer half and smooth on the inner half. The 3rd on is smooth on both halves

The pictures are of the very first version on the left and the second version on the right. The 3rd version (not pictured) was used from 66 on.

txs Jim!! So which is the earliest one you reckon, the 'gold' or 'silver' one?

Quote:

---

Originally Posted by pss

txs Jim!! So which is the earliest one you reckon, the 'gold' or 'silver' one?

---

If you take another look at Jim's pictures you will see that the silver one has less / lower ribs on the second picture that he posted. So that is the later one.
BUT plating is another trivia item (to me at least). In chronological order it would make more sense if the 356 would have been silver, and the later one gold. But I also think that the 'silver' one on Jim's picture is actually faded 'gold'. In that case the question remains, were 356 calipers silver or gold finished and same question for the very early 911 (901).

Richard

eghhh, sorry guys, it is indeed obvious from Jims text. Cheers!
However, I agree with Richard and on top I would think extra cooling fins would have been added later for the 911 with the higher speed potential and weight vs the 356. Any thoughts on this?

Anyway, while we clarify this dear all,
pls check your calipers and let me know your type so we can find out when it changed (and possibly empirically check which one was older?).
Txs, Jacques

Sorry guys, I wasn't clear enough. The very 1st 911s got the 356C rear caliper with ribs on both caliper halves. Soon after, they changed to the caliper with ribs only on the outer half. One can only guess as to why that is. As to the plating, Neither of these calipers are "as original". The duller one is a msitake by my plater. All ATE calipers used on Porsches were plated with yellow zink. None were silver or clear. The plating fades very soon after use and leads many "experts" to determine that there were silver calipers. That is a myth.

Regards

Jim

Txs Jim. I have heard that the yellow zinc technique was only introduced to mankind after 1965, hence no part on a 1965 911 should be yellow zinc. What is your take on that for the calipers? Is the ATE caliper in yellow zinc from after 1965?
