Special early 1964 features on 1965 cars

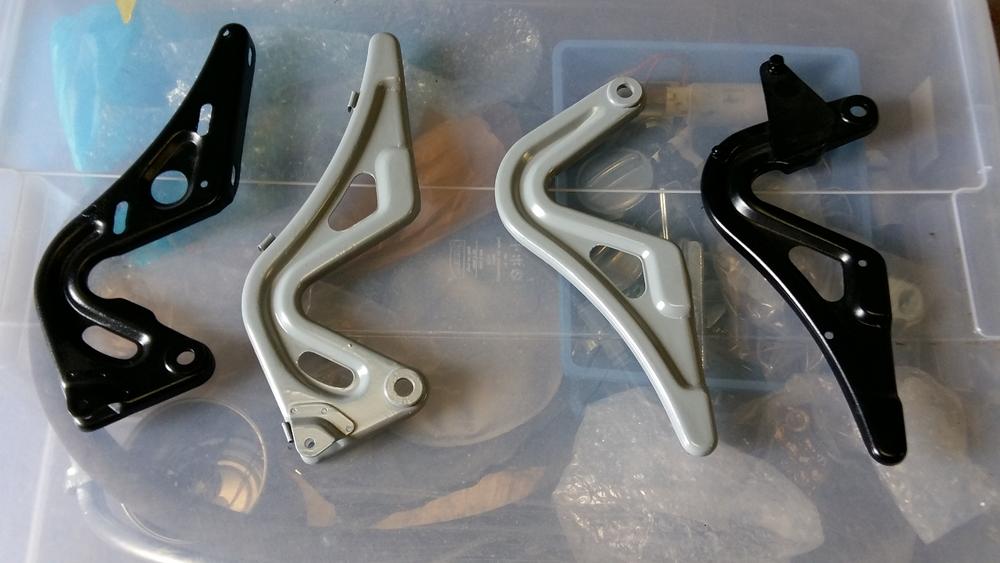

I found 2 different types of hinges for the engine lid. The grey ones (although finish should be satin black) are 1965 if I am not mistaken. The Black ones I do not know. Anybody? (Never mind the second picture, should not have been posted, but I cannot delete it. Administrator can you help?)
Attachment 418890

Quote:

---

Originally Posted by pss

I found 2 different types of hinges for the engine lid. The grey ones (although finish should be satin black) are 1965 if I am not mistaken. The Black ones I do not know. Anybody? (Never mind the second picture, should not have been posted, but I cannot delete it. Administrator can you help?)
Attachment 418890

---

those are much later ones for rear wing lids with an extra strut to hold the extra weight.

but very early hinges64+early?65(at least the front ones are slightly different to later `65-
have pics ................. somewhere

btw the fuel tank in pic 2 with sombrero inspired coating is the later 68 type with the flat area under the spare wheel

Txs Franz. Do you know what part of the carpet for the side walls in the luggage room was glued? 10 cm, 20? Possibly not the same along the full length of the side walls?
Grz, J

Fuel tank manwhile replaced with 1965 one. I mixed them up....

Can someone please help me identify a 64-early 65 rear decklid grill?

I know it is taller than the later grills, could someone point to a thread about them
or tell me the difference?

Thanks I searched and failed.

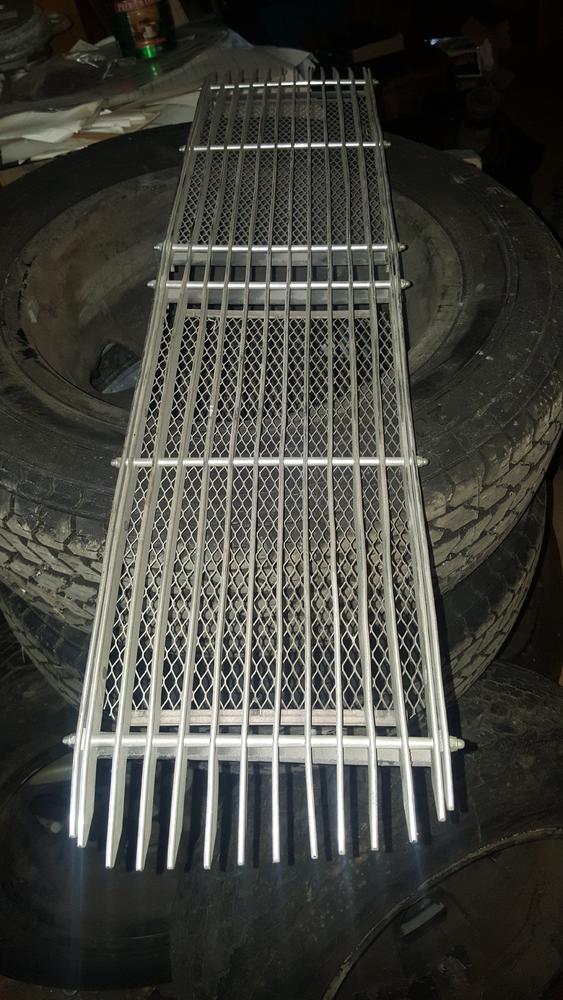

Edited to add pics: First grille I think is a 67. in the second pic notice the spacing of the rivets from the top of the grille compared to the 67.

67
Attachment 419703

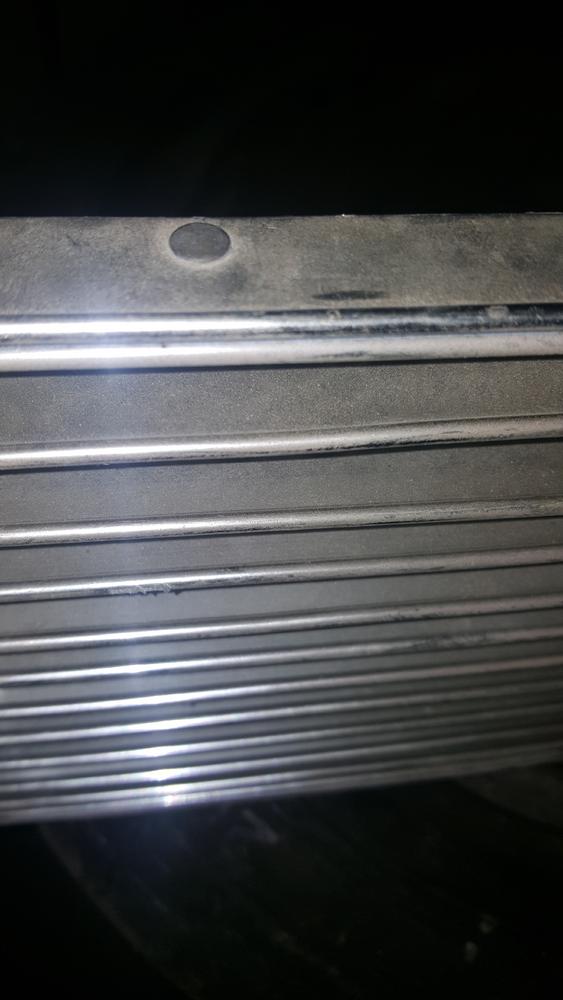

Early?
Attachment 419704

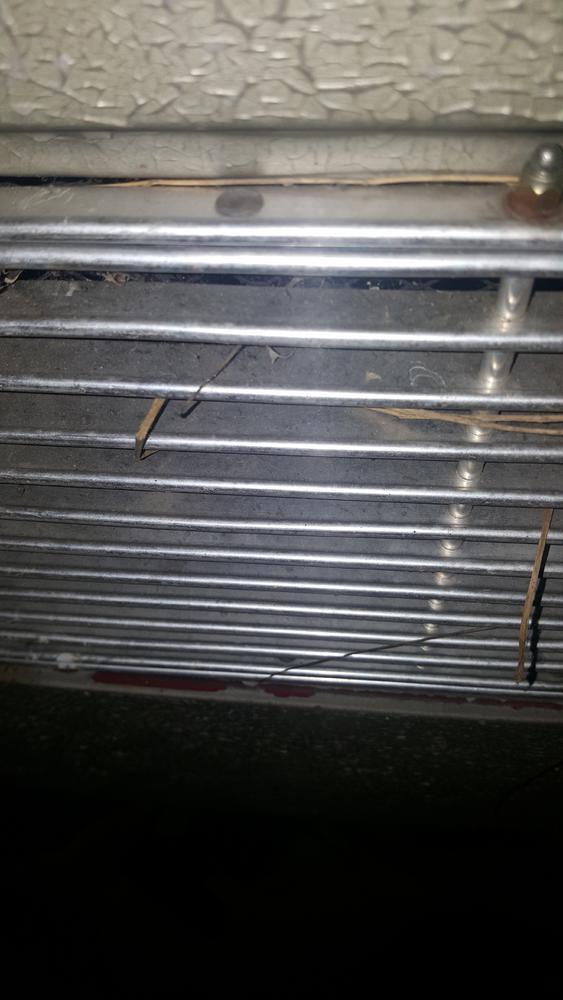

grille in question below
Attachment 419705

Quote:

---

Originally Posted by 21window

Can someone please help me identify a 64-early 65 rear decklid grill?

I know it is taller than the later grills, could someone point to a thread about them
or tell me the difference?

Thanks I searched and failed.

Edited to add pics: First grille I think is a 67. in the second pic notice the spacing of the rivets from the top of the grille compared to the 67.

67
Attachment 419703
Early?
Attachment 419704
grille in question below
Attachment 419705

---

2nd pic is early,3rd also looks like the early version...bars on the early are also thinner

Quote:

---

Originally Posted by moito

2nd pic is early,3rd also looks like the early version...bars on the early are also thinner

---

Thank you very much for the quick response. So 64 to early 65 only correct?

Correct. The change appears to be during 3007xx run.

This might be helpful.

http://www.early911sregistry.org/for...of-day-(again)! Thanks.

-Allen-

Quote:

---

Originally Posted by 21window

Thank you very much for the quick response. So 64 to early 65 only correct?

---

exactly....

have a close look at the edge
http://www.early911sregistry.org/for...868#post891868
