Hello Jacques, et al,Quote:
Originally Posted by pss
I have been watching this thread and am infatuated with details like these. When I was collecting Alfa Romeo I did much the same thing. My hope by making my post was to clarify that some of the features such as centerlube cams and mushroom shift knobs continued into Q4 1965. Please let me know if I can be of further help, I'll be following along. :D
Much appreciated Alex, once we stabilize this we can extend to 2H65. Great to get prepared for that and get your checks already reported here!
Now, I did some skimreading of Dr Johnson, with some more info for this thread (page nr between brackets)
- non adj shock towers changed mid 65 (42)
- 4 screw horn grills changed at 3468 (20)
- small round knob engine decklid release changed in 1966 (9)
- wedged door frame changed at 2805 (26)
- 4 screw dash changed at 1175 (46). This seems wrong, given our data
- 911 scripts introduced at 912 introduction (54), my guess this is March 1965, confirmed by our data
Here the last one for today's rhythm and rigor
Attachment 318954
A lot of final chassis numbers or engine numbers can be gleaned from the parts book or spec booklet.
- The first window frame--presumably the "wedge" (901.542.005.20 for the left side) ran up to 911 coupe chassis # 302805
- The last "6 Volt Flywheel" (same starter gear teeth as a 356 or a 6 Volt VW) was engine # 901638
- The first style camshaft--presumably center lubricated--was used through engine 903069
- Solex carburetors were used up to engine # 903360 (21 Feb 1966)
- The 25 pound front bumper "reinforcements" were introduced with chassis # 301340
Jacques,
Some more things to add for #301111
Flat latch panel, No
Wedged door frames, Yes
Carpet hooks in luggage comp., Yes
Extra aircleaner inlet, Yes
Gray turn signal gaskets, Yes
Early exchanges, No
Thanks,
John
Txs for the good stuff received again. Since today we even have a car with 2 screw doorframe (txs Greg) and since yesterday one with the original exchangers (txs Milou).
I do not want to make it a never ending story with an ever floating scope, but feel we are not there yet. I thought I needed to add a few features still. Some I know have not necessarily changed during 1H65, but I feel they are still interesting as they define our period distinct cars. I am not sure I am opening Pandora's box here, let's see.
We are especially interested in very early cars. If you have links to picture series of cars auctioned or sold, that could help. A few cars in the overview I explored like that (250, 292, 567, 835).

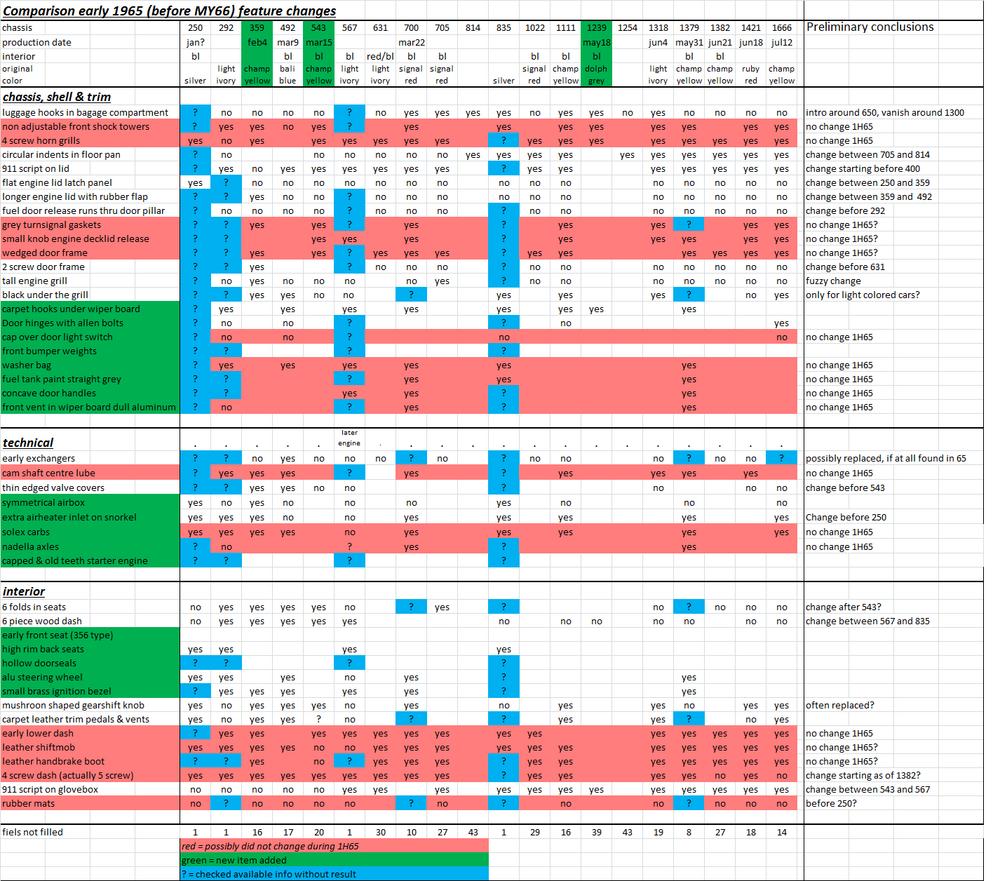

Sorry for the ones who thought they have completed their input...... The indicator below shows how many lines you still have to go.....:p
Attachment 319077
I would like to add a few of the new items for 359
--not sure what carpet hooks under wiper board means
allen bolts--no
cap--no
bumper weights-- unknown but does not have them now . will have to ask my dad if he removed
washer bag-- not sure what this is. there is just hole in the right side inner fender to add fluid
grey tank--yes
concave handles ---yes
front vent dull aluminum--no
looks black here>>>
Attachment 319101
-
-
-
nadella axles had them but does not now
capped and old teeth starter engine--?
early front seat 356-- unsure what this is exactly
high rimmed back seat-- again unsure what this is
hollow doorseals--no
aluminum steering wheel--yes
--
Greg,
txs. Nice number plate!
Dr. B Johnson states that very early front seats resembled the 356 type. I do not know whether he just means the types with 3 screw reclining mechanism, or something else. Who can help?? If nobody knows, maybe we can compare some detailed pictures of <500 cars with >1000 cars?
Point 2 is the perceived black vent under the windscreen. I find them always looking black from a distance. Any opportunity to look more closely?
Some more pics here to explain what we mean:
Here is the correct starter engine, where you see the housing over the axle. Later this shroud disappeared and the axle was just sticking out, while the teeth configuration also changed (different flywheel).
Attachment 319130
The lower part of the back seats on early cars show the high sides (car 250)
Attachment 319131
The hollow door seals (as per Dr B Johnson).
Attachment 319132
Alu wheel (Milou 492), clearly showing the alu inner rim covered with yellowish lacquer.
Attachment 319133
Washer bag location right front, in between the outer and inner wheel screens (general question: in case you see wrong terminology, pls correct my poor English and allow me to learn), with only the lid sticking out (car 835).
Attachment 319134
The carpet hooks, where the carpet was attached to the wiper board. in 1964 they were not there and I do not know when they appeared.
Attachment 319135
The tank color is a straight smooth grey, opposed to the textured grey coating for later cars (changed mid 1966, Dr B Johnson), I do not have good pictures to show the difference. Who has?
Jacques, here's a few more for #301111
John
Hollow doorseals, No
Small brass ignition bezel, Yes
High rim back seat, Yes
Cap over door switch, No
Front bumper weights, No
Washer bag, Yes
Fuel tank straight gray, Yes
Concave door handles, Yes
Nadella axles, Yes
Front vent dull, Yes
