Thread: Sticky MFI lever

  1. 07-22-2023, 08:57 AM #1
    Simonjjb
    Simonjjb is offline
    Senior Member Simonjjb's Avatar
    Join Date
    Dec 2013
    Location
    Connecticut/Florida
    Posts
    1,679

    Sticky MFI lever

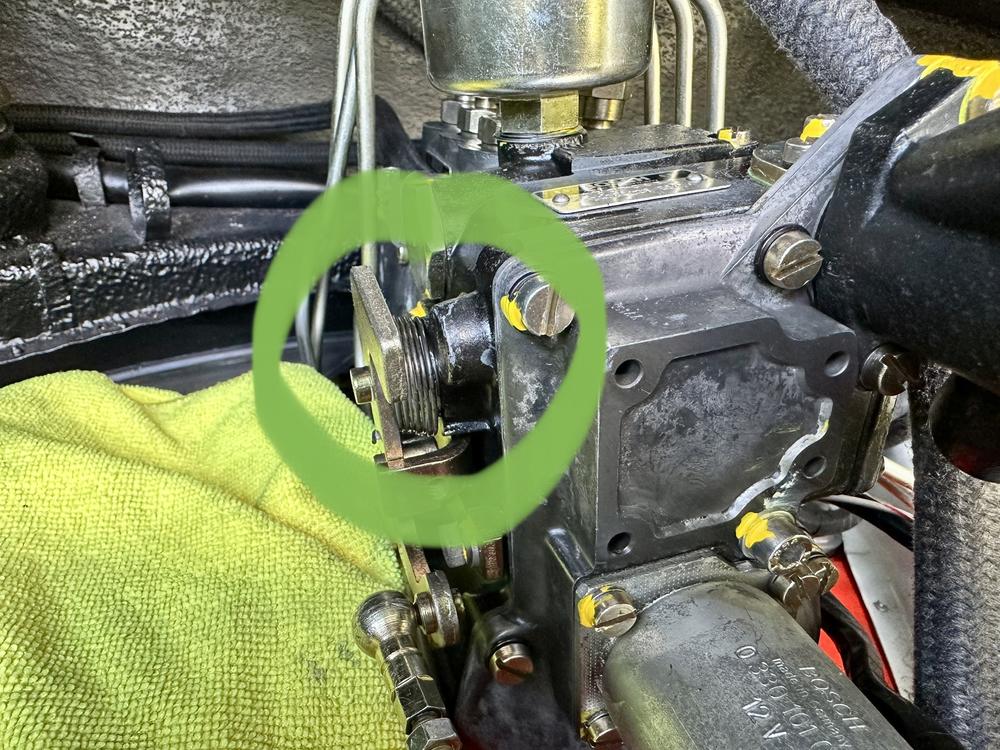

    I’ve noticed that my throttle doesn’t always fully close when I lift slowly off the pedal. After slowly removing each section and rods I am back to the pump lever. When I lift off fully it closes all the way. However, if I do it slowly it doesn’t. It seems to stick a slight bit near the end. When I move the lever on the pump the same thing happens. I’ve sprayed some penetrating oil behind the lever connected to the pump but not much changed. Any ideas besides putting another return spring on the connecting rod?

    Name: IMG_2935.jpg Views: 180 Size: 169.9 KB
    1968 911L Coupe - Golden Green
    1971 911S Coupe - Gemini Blue
    1973 911S Targa - Signal Yellow
    1974 914 2.3 - Sunflower Yellow
    Reply With Quote Reply With Quote
  2. 07-22-2023, 09:34 AM #2
    edmayo
    edmayo is offline
    Senior Member
    Join Date
    Jul 2006
    Posts
    8,335
    What happens if you remove the pump control rod from the cross bar? and just operate the pump lever by itself? The cross bar all by itself may not be free enough. Also back out the microswitch adjustment so there is no effect there and see what happens. I see the pump appears to have had a recent rebuild so I would think the rack is not a problem.
    Early S Registry member #90
    R Gruppe member #138
    Fort Worth Tx.
    Reply With Quote Reply With Quote
  3. 07-22-2023, 10:52 AM #3
    Simonjjb
    Simonjjb is offline
    Senior Member Simonjjb's Avatar
    Join Date
    Dec 2013
    Location
    Connecticut/Florida
    Posts
    1,679
    I should have been clearer - nothing is connected to the pump at this point. It’s ever so slight - but there is some binding of the lever. Yes, pump rebuilt and tested.
    1968 911L Coupe - Golden Green
    1971 911S Coupe - Gemini Blue
    1973 911S Targa - Signal Yellow
    1974 914 2.3 - Sunflower Yellow
    Reply With Quote Reply With Quote
  4. 07-22-2023, 10:52 AM #4
    steve shea
    steve shea is offline
    Senior Member
    Join Date
    Jun 2006
    Posts
    1,579
    Quote Originally Posted by edmayo View Post
    What happens if you remove the pump control rod from the cross bar? and just operate the pump lever by itself? The cross bar all by itself may not be free enough. Also back out the microswitch adjustment so there is no effect there and see what happens. I see the pump appears to have had a recent rebuild so I would think the rack is not a problem.
    What Ed said. Also check the flapper box plate/roller for smooth closure. They can get gunked up and not fully close if done slowly but will if quick full lift.
    Steve Shea #1 joined a long time ago
    58 speedster
    66 912
    67S
    73S
    97 VW eurovan
    1132 honda snowblower

    member Jackson Hole Ski Club
    Reply With Quote Reply With Quote
  5. 07-22-2023, 05:27 PM #5
    Richy
    Richy is offline
    Senior Member
    Join Date
    Oct 2010
    Location
    Southern Ca.
    Posts
    1,336
    From my experience , the pump lever sometimes sticks when the pump is stationary but returns when the pump is turning , so not a good test , problem most likely elsewhere .
    Reply With Quote Reply With Quote
