Thread: 2 stages rear window defroster switch wiring

  1. 06-25-2023, 07:27 AM #1
    carrera79
    carrera79 is offline
    Senior Member carrera79's Avatar
    Join Date
    Feb 2013
    Location
    France
    Posts
    148

    2 stages rear window defroster switch wiring

    hello,

    can someone help me with the wiring for my 2 stage rear window defrosting switch ?
    here is a picture of the switch
    Attachment 598627

    which color on A, B, C or D ?

    missing is the small bulb to light the switch on center, so I have 5 wires to put on ?
    I have 3 brown together, and a black with a grey also together.
    but I think the grey and the black should be separate, but what are the other wires I need ?

    Attachment 598628


    thanks for any help

    frederic Name: IMG_9611[2].jpg Views: 375 Size: 141.7 KBName: IMG_0359[1] copy.jpg Views: 343 Size: 132.5 KB
    Reply With Quote Reply With Quote
  2. 06-27-2023, 11:47 AM #2
    NorthernThrux
    NorthernThrux is offline
    Senior Member NorthernThrux's Avatar
    Join Date
    Jun 2012
    Location
    London, Ontario, Canada
    Posts
    2,289
    See if this post is helpful. https://www.early911sregistry.org/fo...=1#post1029255
    Mine is a '73S. If not, I can pull the switch and take a picture.

    Ravi
    Early 911S Registry # 2395
    1973 Porsche 911S in ivory white 5sp MT
    2015 Porsche Macan S in agate grey 7sp PDK
    Reply With Quote Reply With Quote
  3. 06-28-2023, 05:57 AM #3
    carrera79
    carrera79 is offline
    Senior Member carrera79's Avatar
    Join Date
    Feb 2013
    Location
    France
    Posts
    148
    hello,

    seen your post, if you can take a full picture would be lovely

    TIA

    fred
    Reply With Quote Reply With Quote
  4. 07-08-2023, 04:58 AM #4
    Dmill
    Dmill is offline
    Senior Member
    Join Date
    Oct 2006
    Posts
    885
    since you have it all apart...you may want to install the rubber grommets that went into the holes in the dash and sealed the switch...wasn't really much of a seal..but it kept the air from coming into the cabin
    Reply With Quote Reply With Quote
  5. 07-08-2023, 09:31 AM #5
    NorthernThrux
    NorthernThrux is offline
    Senior Member NorthernThrux's Avatar
    Join Date
    Jun 2012
    Location
    London, Ontario, Canada
    Posts
    2,289
    Quote Originally Posted by carrera79 View Post
    hello,

    seen your post, if you can take a full picture would be lovely

    TIA

    fred
    Apologies, I’ve been doing some travelling. Will take a pic in the next few days.
    Early 911S Registry # 2395
    1973 Porsche 911S in ivory white 5sp MT
    2015 Porsche Macan S in agate grey 7sp PDK
    Reply With Quote Reply With Quote
  6. 07-09-2023, 07:16 AM #6
    carrera79
    carrera79 is offline
    Senior Member carrera79's Avatar
    Join Date
    Feb 2013
    Location
    France
    Posts
    148
    Reply With Quote Reply With Quote
  7. 07-09-2023, 07:17 AM #7
    carrera79
    carrera79 is offline
    Senior Member carrera79's Avatar
    Join Date
    Feb 2013
    Location
    France
    Posts
    148
    thanks for help
    Reply With Quote Reply With Quote
  8. 07-09-2023, 07:59 AM #8
    gerakroo
    gerakroo is offline
    Senior Member
    Join Date
    Feb 2012
    Location
    Kolham, Groningen, The Netherlands.
    Posts
    141
    The letters are a bit confusing but i think:

    A , marked 3 on switch ? - Jumper to C + single black ,from tunnel harness
    B, marked 4 on switch ? - White black (from tunnel harness)
    C, marked 2 on switch ? - See A
    D, marked 1 on switch ? - Double black (from main harness)

    The spade terminal on the bulb holder gets a brown wire (3 x)
    Reply With Quote Reply With Quote
  9. 07-09-2023, 08:59 AM #9
    _gonbau
    _gonbau is offline
    a _gonbau's Avatar
    Join Date
    Apr 2016
    Location
    Canary Islands
    Posts
    1,483

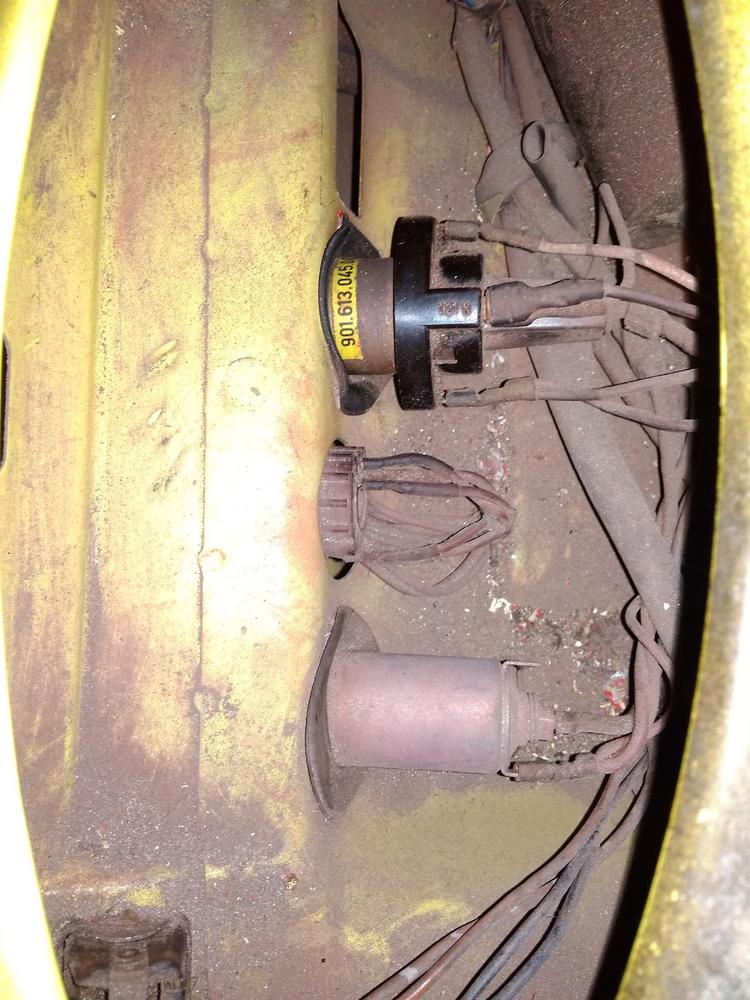

    I think it's the right switch. I don't know if the photo will help you much!
    Name: IMG_20190511_220651.jpg Views: 226 Size: 120.2 KB
    Baudett // https://www.instagram.com/Baudett_canarias/
    Reply With Quote Reply With Quote
