    Factory A/C and Factory Aux Front Oil Cooler Line Routing - Anyone have a Photo?

    My project is an early (#163) 72T with factory A/C and my engine will need extra cooling. Would like to duplicate the 1972 911S with factory A/C and front right aux oil cooler setup. Looking for a photo of how the 2 A/C hoses and 2 hard oil lines co-exist along the right side rocker area.

    It would be a huge help if someone has a photo that they could kindly post or DM showing the hose and hard line arrangement along the rocker area between the wheels so I can duplicate the factory method.

    Thanks!
    -Edwin
    Owned 21000163 (build date 7/71) since 5/82
    Reply With Quote Reply With Quote
  2. 08-17-2023, 10:20 AM #2
    72targa
    72targa is offline
    Senior Member 72targa's Avatar
    Join Date
    Feb 2004
    Posts
    13,532
    I think I can help. I wish I had a lift. What pics are you looking for at this point?
    Peter Kane

    '72 911S Targa
    Message Board Co-Moderator - Early 911S Registry #100
    Reply With Quote Reply With Quote
  3. 08-17-2023, 11:38 AM #3
    beech33pilot
    beech33pilot is offline
    Junior Member
    Join Date
    Jan 2014
    Location
    North Carolina
    Posts
    20
    Peter that would be wonderful!
    I mainly want to see the order that the pipes are laid out and get some idea of where on the pan that they are routed.

    Dont need a lift, just hold your phone under and snap a few i think.

    many thanks
    -Edwin
    Owned 21000163 (build date 7/71) since 5/82
    Reply With Quote Reply With Quote
  4. 08-17-2023, 01:03 PM #4
    RSTarga
    RSTarga is offline
    member #1515
    Join Date
    Mar 2009
    Location
    San Antonio, Texas
    Posts
    4,280
    Check pictures 135-138
    https://bringatrailer.com/listing/19...911s-targa-26/
    David

    '73 S Targa #0830 2.7 MFI rebuilt to RS specs
    Reply With Quote Reply With Quote
  5. 08-17-2023, 03:16 PM #5
    beech33pilot
    beech33pilot is offline
    Junior Member
    Join Date
    Jan 2014
    Location
    North Carolina
    Posts
    20
    Hi David,
    Thanks for the link - That's a great car!
    I looked closely and don't see any sign of the oil hard lines but I do see the old red refrigerant lines.
    Didn't all 911S's have a factory aux cooler? Maybe it was just a percentage.
    -Edwin
    Owned 21000163 (build date 7/71) since 5/82
    Reply With Quote Reply With Quote
  6. 08-17-2023, 03:53 PM #6
    edmayo
    edmayo is offline
    Senior Member
    Join Date
    Jul 2006
    Posts
    8,185
    The front cooler was standard S equipment from 69 thru 72. Starting in 73 the front cooler became an option. To the best of my memory when equipped with A/C the lines were split one to each side.
    Early S Registry member #90
    R Gruppe member #138
    Fort Worth Tx.
    Reply With Quote Reply With Quote
  7. 08-17-2023, 06:15 PM #7
    72targa
    72targa is offline
    Senior Member 72targa's Avatar
    Join Date
    Feb 2004
    Posts
    13,532
    To add to the BaT reference…

    Engine compartment…
    Attached Images Attached Images
    Peter Kane

    '72 911S Targa
    Message Board Co-Moderator - Early 911S Registry #100
    Reply With Quote Reply With Quote
  8. 08-17-2023, 06:19 PM #8
    72targa
    72targa is offline
    Senior Member 72targa's Avatar
    Join Date
    Feb 2004
    Posts
    13,532
    Adding to the BaT reference…

    Driver side…
    Attached Images Attached Images
    Peter Kane

    '72 911S Targa
    Message Board Co-Moderator - Early 911S Registry #100
    Reply With Quote Reply With Quote
  9. 08-17-2023, 06:24 PM #9
    72targa
    72targa is offline
    Senior Member 72targa's Avatar
    Join Date
    Feb 2004
    Posts
    13,532
    Adding to the BaT reference….

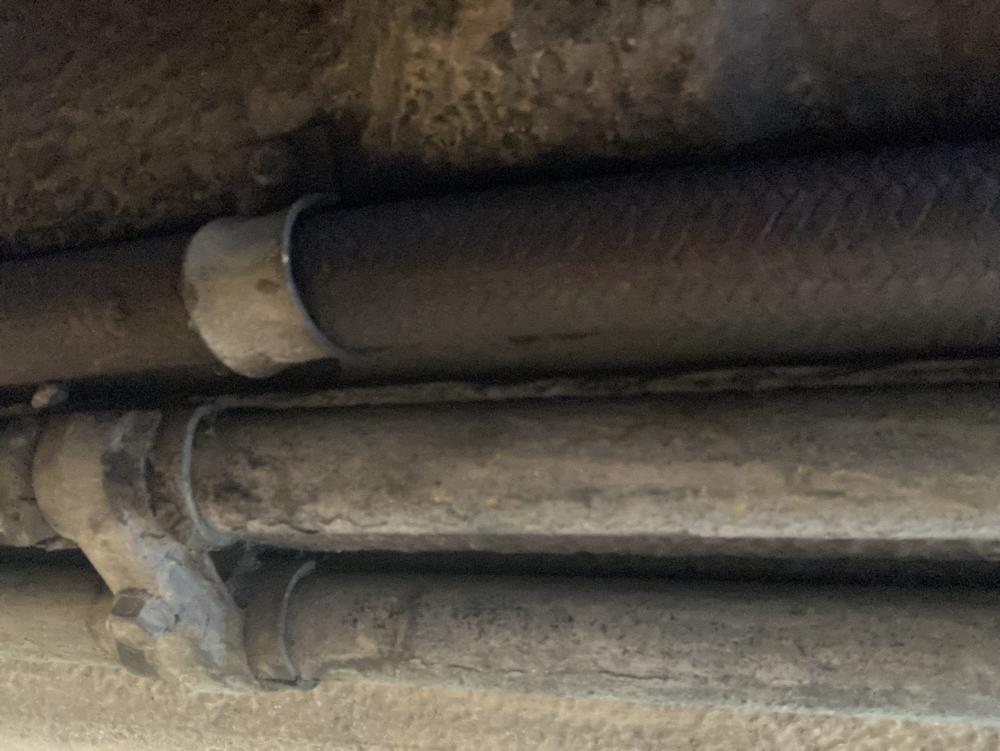

    Passenger side…

    Let me know if I can provide any further details…
    Attached Images Attached Images
    Peter Kane

    '72 911S Targa
    Message Board Co-Moderator - Early 911S Registry #100
    Reply With Quote Reply With Quote
  10. 08-20-2023, 01:00 AM #10
    beech33pilot
    beech33pilot is offline
    Junior Member
    Join Date
    Jan 2014
    Location
    North Carolina
    Posts
    20
    Thank you all! Thank you Peter for the pictures of your 72. I feel confident that I can get my 72 built with correct hose and line mounting.
    -Edwin
    Owned 21000163 (build date 7/71) since 5/82
    Reply With Quote Reply With Quote
